Buteline Fittings

Buteline fittings are integrally strong and durable, moulded from a high tensile premium grade custom thermoplastic and pre-fitted with annealed aluminium sleeves.

These one-piece plumbing fittings, once jointed with Buteline Polybutene-1 pipe, form a unique and technically superior joint that is maintenance free. Users will find Buteline fittings much quicker to install and more economical than other available systems.

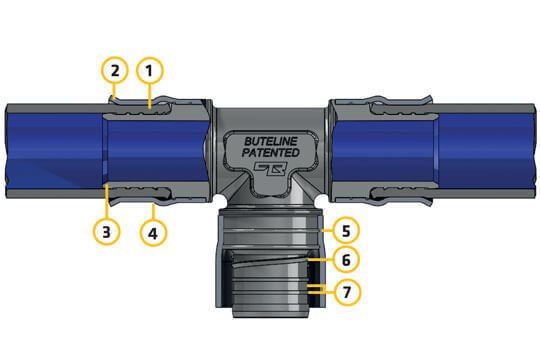

1. 8mm WIDE FORGED CLAMP - Minimum working stress applied (approx. 0.5 ton per sq. in.) allowing pipe material to “flow” into insert tail grooves.
2. 2mm WIDE FLARE - No stress from clamping transmitted to insert tail or pipe at end of fitting. End of metal sleeve cannot impinge into pipe, even in bending.
3. TAPERED ENTRY, SMOOTH BORE - Minimises resistance to water flow.
4. METAL REINFORCING SLEEVE - Guarantees no stress break in this critical area.
5. FULL LENGTH ALUMINIUM SUPPORT - Provides additional rigidity and resistance to pull-off. Seals against dirt and moisture.
6. SUREFIT HELIX - Patented design feature prevents pipe from falling off, ensures precise positioning.
7. SEALING RIBS - Narrow lands with wide grooves ensure clamp stress is transferred into the pipe joint efficiently.

Why Choose Buteline Fittings

Why Choose Buteline Fittings

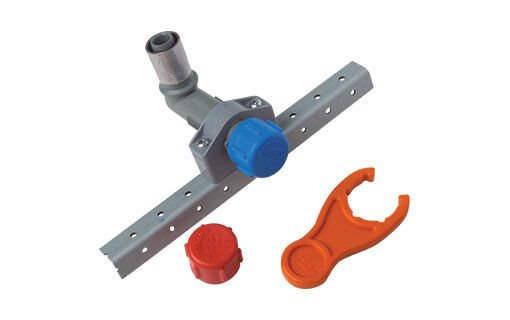

Learn more about innovative polymer fittings

Learn more about innovative polymer fittings

Buteline manufacture several innovative polymer fittings as an alternative to traditional brass fittings such as wingback elbows and manifolds. These polymer fittings are not only environmentally-better, they could save you up to 45% in cost!

Learn more play_arrow
Learn more about the Buteline installation process

Learn more about the Buteline installation process

The installation process for Buteline is very quick and simple, and always provides a visual indicator of joint completion: Simply cut, insert, clamp, complete!

Learn more play_arrow
